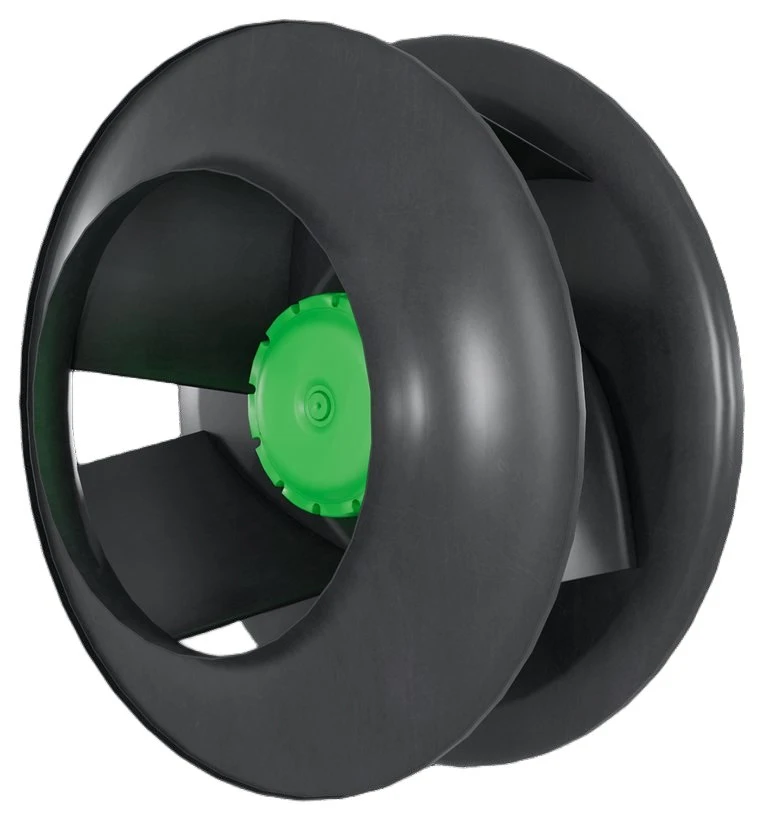

One platform, wheels from 133 mm to 630 mm - that breadth is the point of the YUWE. It covers airflow 600-22,000 m3/h at pressures up to 1,200 Pa, so the same basic design serves compact ventilation boxes at one end and larger central air handling equipment at the other. The 1,200 Pa ceiling suits systems with light to moderate resistance: short duct runs, modest filter banks and coils rather than heavily loaded cleanroom plants. The plug-in, unhoused layout keeps cabinet space free and leaves the cartridge easy to pull for service.
Why choose it over a belt-driven unit
A belt-driven centrifugal fan needs a belt, pulleys and periodic tension checks; the YUWE runs direct from an EC motor mounted on the wheel shaft, so none of that applies. The motor and electronics are integrated - no standalone VFD to mount on the panel. Control comes through VSP, 4-20mA, PWM and 485, matching thermostat, CO2 or BMS signals for demand-based speed changes. Motor power runs 500W-4500W, insulation grade F, ambient -25 C~40 C.
Typical installations
Fresh-air units and AHUs in commercial buildings, offices, restaurants and light industrial ventilation systems use this series. When you narrow the choice, look first at static pressure: if the plant will face dense filters or long branches, check against the 1,200 Pa limit before selecting a wheel.
Diameter: 133-630mm
Air Volume: 600-22000 m³/h
Pressure: 0-1200 Pa
Motor Power: 500W-4500W
Control: VSP/4-20mA/PWM/485
Insulation Grade: F
Working Temp: -25℃~40℃
YUWE covers a wide 133-630 mm plug-fan range (600-22,000 m3/h) for fresh-air units and air handling units. Its integrated EC motor gives built-in speed control with no external VFD.
