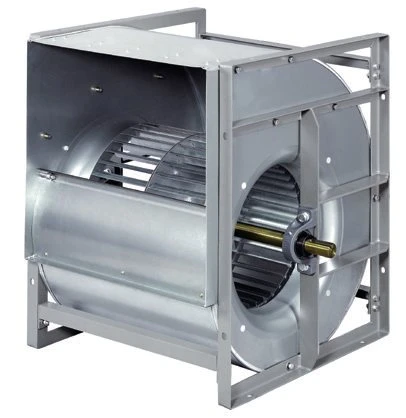

SYD — Double Inlet Forward Multi-Blade Centrifugal Fan

Midi Industrial is a renowned Asian manufacturer of HVAC fans and building ventilation fans for engineering projects - engineered to fuse aerodynamics, motor technology and intelligent control.

The SYD in brief
Where the SYT tops out around 50,000 m3/h, the SYD goes further: up to 100,000 m3/h across 180-1000mm wheel diameters, still on a double-inlet forward multi-blade wheel and belt drive. This is the larger sibling for big air handling units and central stations that serve multiple floors or whole zones. The forward-curved blade shape keeps airflow high at the low to medium pressure most supply systems actually run at, while the double inlet shortens the machine against a given duty.

Why belt drive matters here
On a fan this size, a belt drive gives you room to tune the duty point after installation. Change the pulley ratio and the wheel speed changes to match the airflow and pressure your system settles at once filters are loaded. The motor is mounted outside the air path, on a slide rail, so belt tension can be adjusted without disturbing the wheel. Plan for periodic belt inspection and eventual belt replacement - that is the maintenance trade-off against direct drive, and it keeps the larger motor easy to reach. Midi Industrial supplies the series as a belt-driven platform for central air-conditioning projects where capacity, rather than a single fixed speed, is the main brief.

Typical fits
Large AHUs, central air-conditioning plants, return-air cabinets and make-up air systems in office towers, malls and industrial halls. Send your airflow and static pressure target; the right wheel diameter and pulley ratio are then matched to the duct resistance.

Impeller Diameter: 180-1000mm
Air Volume: 1000-100000 m³/h
Pressure: 0-1300 Pa
Drive Type: Belt drive
